Indomethacin is a non-steroidal anti-inflammatory drug that reduces fever, pain and inflammation. It is a crystalline and poorly water soluble drug and the rate of oral absorption is often controlled by the dissolution rate in the gastrointestinal tract. Although, several different methods are available to produce amorphous drugs, ball milling appears to be the most practical method to amorphization.

In this newsletter, we introduce published articles by Gupta and Bhal et al; wherein dissolution of indomethacin was markedly improved by co-grinding with NeusilinŽ US2. Co-grinding indomethacin with NeusilinŽ US2 in the ratio 1:5 at 75% RH for 5 days at room temperature in a rolling jar mill consisting of a cylindrical porcelain jar and zirconia balls resulted in complete amorphization (Fig 1, 2).

Solubility and dissolution profiles were evaluated using powders in a USP type II dissolution apparatus. Dissolution profiles of indomethacin co-ground with NeusilinŽ US2 initially and at 1 to 3 months of storage at 40°C/75% RH showed a slight increase in the maximum transient concentration (MTC) from the initial sample to the sample stored for 1 month. Further storage for 2 months did not change the MTC. The maximum sustained concentration (MSC) at the start was 13 times higher than the solubility of crystalline indomethacin and increased with storage time (Fig 3).

Amorphous solids of Indomethacin co-ground with NeusilinŽ US2 (1:4 and 1:5) at 75% RH was physically stable for 3 to 6 months when stored at 40°C and 75% RH . A further investigation of pore volumes and pore diameters for the initial and stored samples revealed no difference suggesting that there is no further deposition or depletion of drug from the pores of NeusilinŽ US2 during storage.

Other drug candidates viz. ketoprofen, naproxen, and progesterone showed complete amorphization and stability on milling indicate that NeusilinŽ US2 is an excellent media for amorphization of a large number of BCS class II poorly water soluble crystalline drugs.

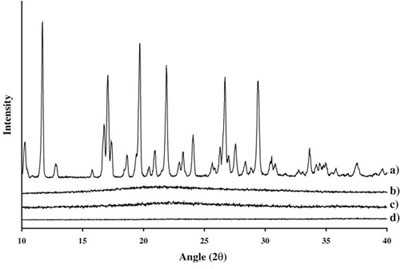

Fig 1. Powder X-ray diffraction scans of a) crystalline indomethacin, b) Amorphous indomethacin (melt –quenched), c) amorphous indomethacin (co-ground at 75% RH with Neusilin US2 in the ratio 1:5 for 5 days), d) Neusilin US2.


Fig 2.  XPD spectra of ball milled powder of indomethacin before and after storage up to 4 weeks at 40°C, 75% RH.

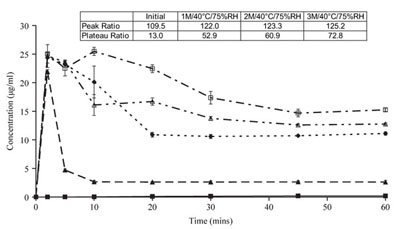

Fig 3. Dissolution profiles (n=3) of indomethacin co-ground with Neusilin US2 (1:5 w/w) in 0.1 N HCl (900 ml) : closed triangle- initial; closed diamond – 1 month at 40°C, 75% RH, open triangle-2 months at 40°C, 75% RH, open square- 3 months at 40°C, 75% RH, Closed square – crystalline indomethacin.




NeusilinŽ US2 is a synthetic amorphous form of Magnesium aluminometasilicate. It has good flow and compressibility properties.  Large amounts of API can be loaded on to NeusilinŽ because of its highly porous nature, high specific surface area of 300 m2/g and high adsorption capacity.


References
1.
Bhal D, Bogner RH., Amorphization of indomethacin by co-grinding with Neuslin US2: amorphization kinetics,physical stability and mechanism. Pharm Res. 23: 2317-25, 2006
2. Bhal D, Bogner RH., Amorphization alone does not account for the enhancement of solubility of drug co-ground with silicate: the case of indomethacin. AAPS PharmSciTech. 9: 146-153, 2008
3. Bhal D, Hudak J, Bogner RH., Comparison of the ability of various pharmaceutical silicates to amorphize and enhance dissolution of indomethacin upon co-grinding. Pharm Dev Tech. 13: 255-269, 2008
4. Gupta MK, Vanwert A, Bogner RH., Formation of physically stable amorphous drugs by milling with Neusilin J Pharm Sci. 92: 502-517, 2003
